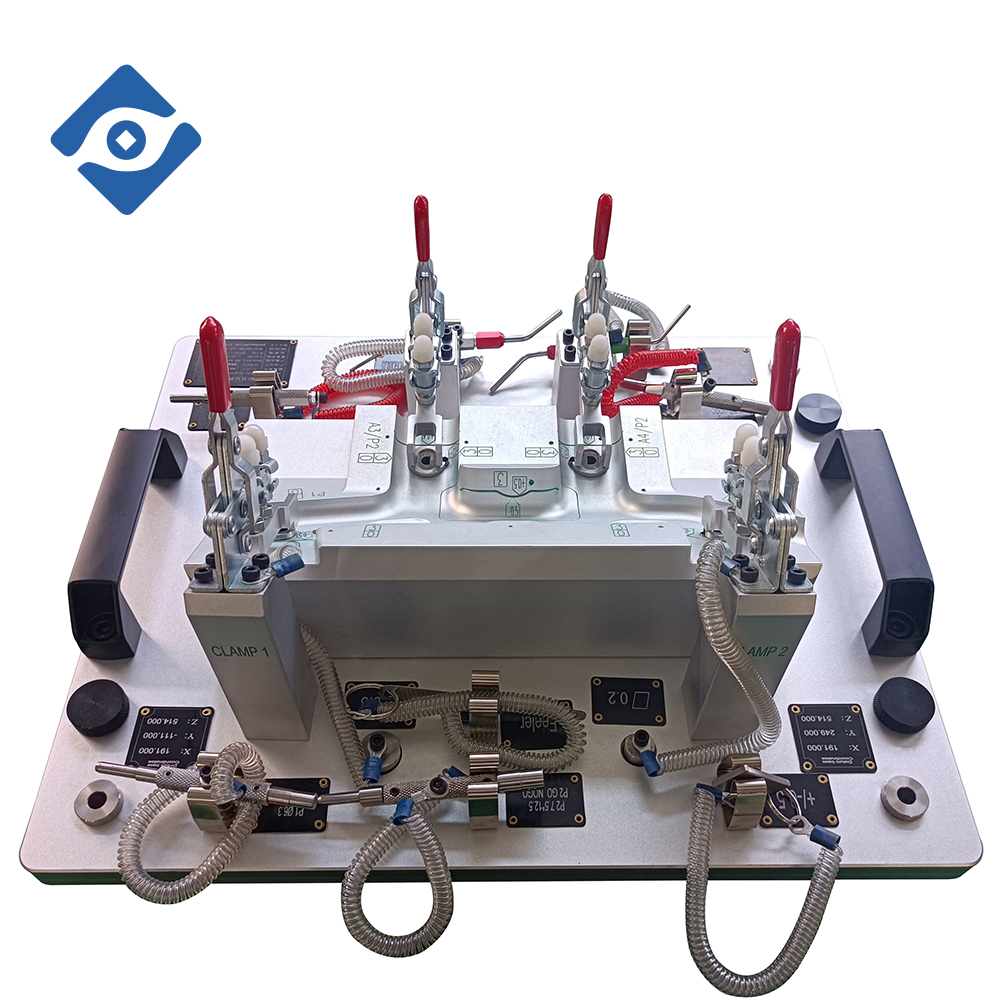

BRACKET-INT MANIF checking fixture for car
- FIFM
- CHINA
- 30 working days
- 800 sets/year
Gauge type: single part checking fixture for stamped
part
Inspection type: hole position, hole size, surface profile, trim edge and
flatness

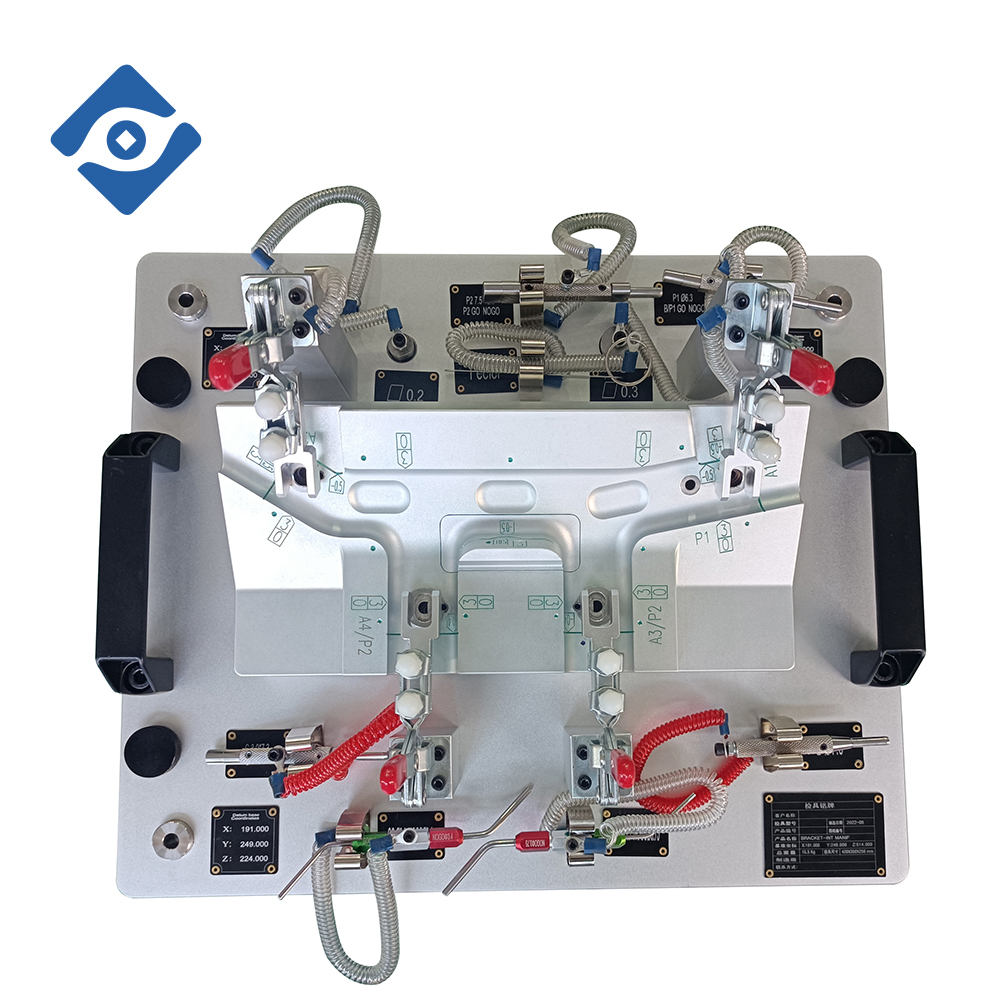

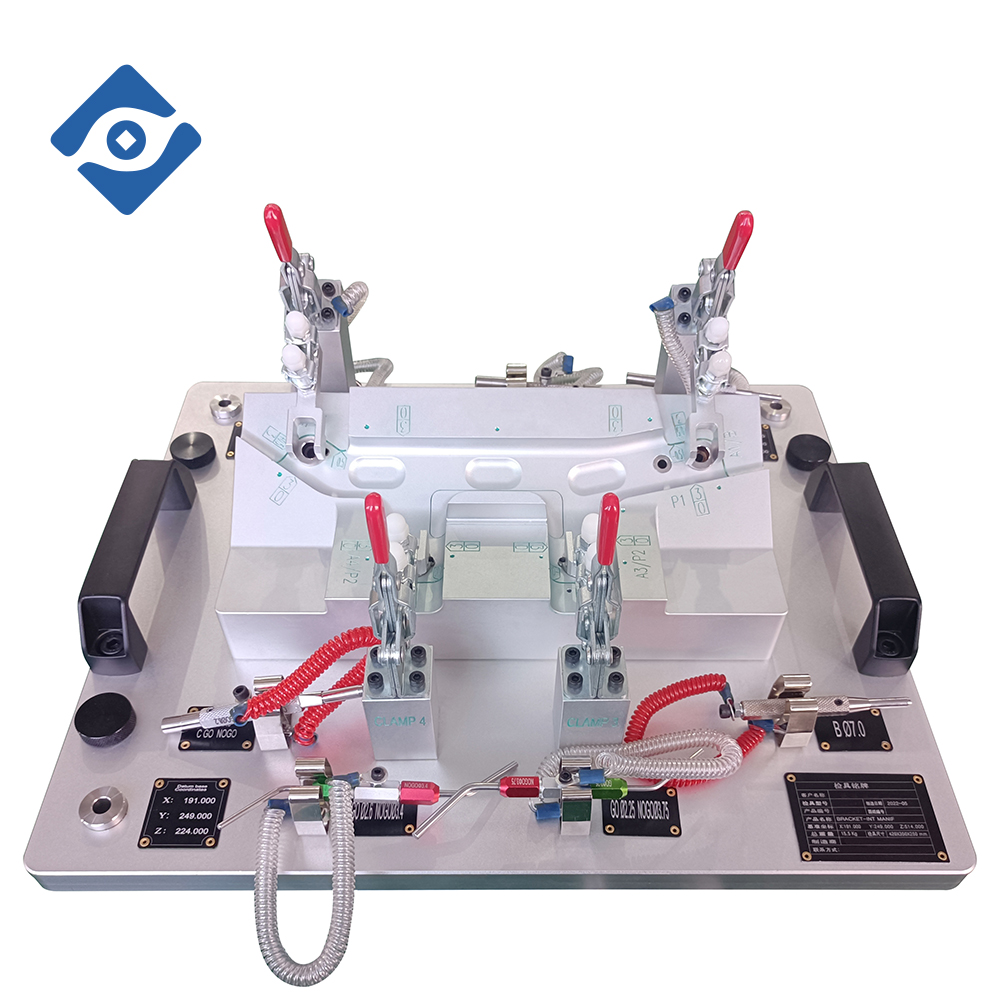

BRACKET-INT MANIF checking fixture for car
Basic information |
|
|
Part name |
BRACKET-INT MANIF |
|
Part material |
Stamped parts |
|
Fixture type |
checking fixture |
|
Fixture material |
aluminium and steel |
|
Scope of checking |
hole position, hole size, surface profile, trim edge and flatness |
|
Accuracy of manufacturing |
datum and locating +/-0.05mm hole position +/-0.05mm form surface is +/-0.1mm |
